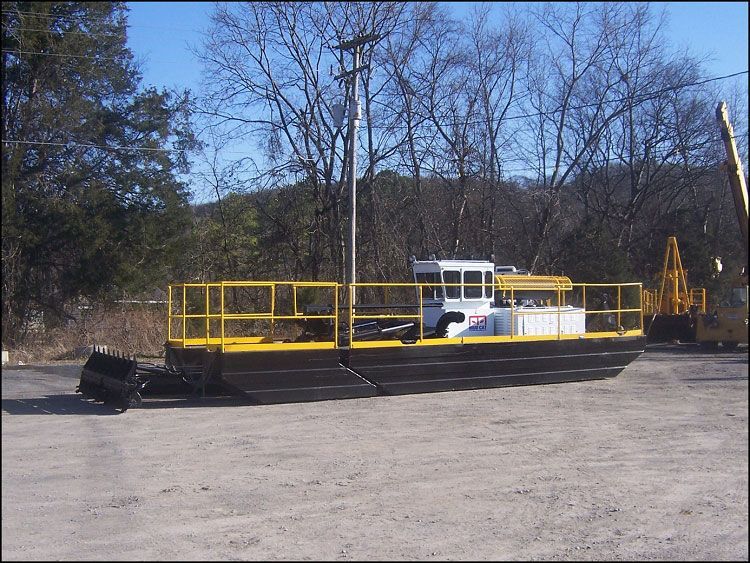

Mud Cat Model MC-15 Refurbished Used Dredge

Price Reduced

Dredge Central, LLC is happy to announce the latest addition to our growing inventory of refurbished used dredges, with the completion of a Mud Cat model MC-15 horizontal auger dredge. This original Mud Cat has been thoroughly refurbished, and is now in first-class condition and ready to go to work.

A brief summary of the specifications is as follows:

General
Length – 38’9″ (11.8 m)
Width – 8’0″ (2.4 m)
Height – 9’3″ (2.8 m) overall
Weight – 19,800 lb (8,980 kg)
Draft – 21″ (0.53 m)
Floating Clearance – 6’7″ (2.0 m) with lights removed
Fuel Capacity – 360 gal (1,363 liters)

Flotation
Pontoons – Two ea 30″ x 32″ x 24’0″ (0.76m x 0.81m x 7.3 m) plus two ea 30″ x 32″ x 6’0″ (0.76m x 0.81m x 1.8m)

Cutter Assembly
Auger diameter – 9″ (229 mm)
Auger pitch – 9″ (229 mm)
Auger flighting – 3/8″ (9.5 mm)
Auger speed – 63 rpm or 105 rpm
Cutter knives – 46 ea detachable heat-treated blades
Cutter bars – 34 ea detachable heat-treated blades
Auger torque – 4000 in-lb
Rotates to cut slope up to 45 degrees

Mud Shield
14″ x 8′ (356mm x 2.44m) hydraulically adjustable

Working Capacity
Cut – 8′ (2.44 m) wide x 18″ (457 mm) maximum depth
Digging Depth – 15′ (4.57 m) maximum

Engine
Detroit Diesel 6-71 RC, 175 hp (130 kW) @ 1800 rpm

Drive
Manual clutch; reduction gear ratio 1.55:1; flex type coupling

Pump
Centrifugal closed impeller
Impeller diameter – 18-1/2″ (470 mm)
Suction diameter – 8″ (203 mm)
Discharge diameter – 6″ (152 mm)
Capacity – 2000 gal/min (126 liters/sec)
Material removal – 50-120 cu.yd/hr (38-92 cu.m/hr)

Hydraulic System
2 pumps with circuit divider; reservoir 60 gal (227 liters)
Circuit One – Auger drive
Circuit Two – Boom, sluice gate, mud shield, and winch

Propulsion
Capstan type hydraulic winch
Traverse speed – 50 ft/min (15.2 m/min) maximum forward and reverse
Average cutting speed – 8 to 12 ft/min (2.4-3.7 m/min)

Electrical System
Voltage – 24 V
Alt. output – 45 Ampere
Batteries – 12 V series wired
Circuits – 2-wire system full ground

This Mud Cat dredge is ideal for most horizontal auger dredge applications, including agricultural and industrial ponds, marina maintenance, canals, etc.

Dredge Central’s Standard Refurbishing Procedure for used dredges includes sandblasting and painting, and inspection, repair, or replacement of all systems as needed. This standard procedure assures that Dredge Central’s refurbished dredges are delivered to the customer in first-class working condition.

Availability: Immediate

Price Just Reduced To: $129,000 FOB Goodlettsville, TN
